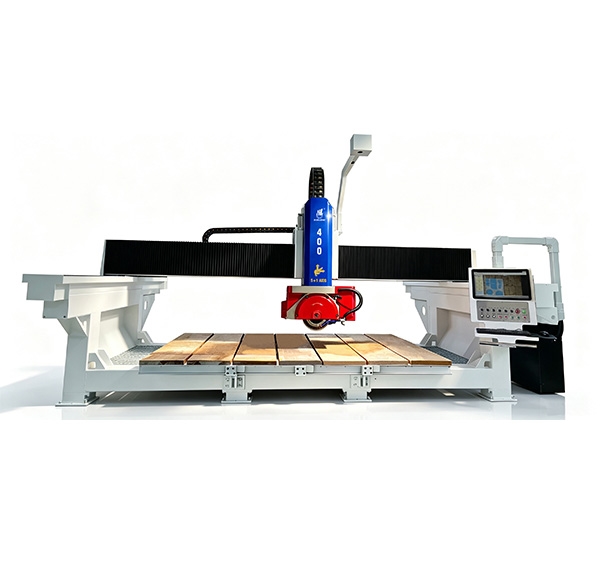

五轴智能多功能切割机，创新设计，功能强大!无缝切换锯片切割、铣削和钻孔模式，实现多样化加工。是石材加工企业、建筑项目、家庭装修和厨房台面制作的终极解决方案。

1.锯片可加工各种特殊形状，包括圆形、肾形边缘、扇形、内外弧、多边形、倒角、槽口和曲线。
2.电动主轴铣头可铣制椭圆形水槽孔、方形内水槽孔、台面水槽槽口、水管钻孔，或铣制其他任意形状。也可旋转90度安装钻孔和铣削工具。
3.利用先进的意大利软件实现高智能控制。多语言支持可灵活切换，适用于全球各国使用。
4.吸盘自动移动以防止材料过度切割，节省材料。
5.测量仪器对接支持导入DXF格式图纸，实现无尘现场安装。
6.照片拍摄功能可提高材料利用率，便于图案追踪并避免布局缺陷。
7.自动润滑和计划维护可降低故障发生概率。

8.工作台面可选配橡胶垫，进一步增强石板切割效果。
9.整机可装入标准20英尺集装箱，节省运输成本。
10.可测量板材，并可选配工具设置装置作为附件。

名称	NAME	单位	HKNC-400 PLUS
锯片直径	Diameter of saw blade	mm	350-450
工作台尺寸	Dimension of working platform	mm	3500*2100
最大切割尺寸	Max.cutting size	mm	3500*2100*80
锯片水平旋转角度	Cutting head rolation	°	0-360°
最大升隆行程	Max. lifting stroke	mm	250
锯片倾斜角度	Blade tilt	°	0-90°
工作台翻板角度	Working table tilt	°	0°/85°
主电机功率	Power of main motor	kw	15
雕刻刀主机功率	Power of electro-spinele	kw	5.5
刀架往复电机功率	Power of cutter frame reciprocating motor	kw	2
大梁移动电机功率	Power of crossbeam shifting motor	kw	1.1
液压站电机功率	Power of hydraulic station motor	kw	2.2
升降电机功率	Power of lifting motor	kw	0.85
耗水量	Water consumption	m³/h	2
整机重量	Gross weight	KG	4500
外形尺寸	Dimensions (L x W x H)	mm	5800×3380×2770

Five-Axis Intel ligent Multi-Purpose Cutting Machine Innovative Design, PowerfulFunctional ity! Seamlessly switch between saw blade cutting, mi lling., and drill ing modes forversatile processing. The ultimate solution for stone processing enterprises, architecturalprojects, home decoration, and kitchen countertop fabr ication.


1. The saw blade can process var ious special shapes, including circles, kidney edges, fans,inner/outer arcs, polygons, chamfers, slots, and curved lines.
2. The electric spindle milling head can mill oval sink holes, square inner sink holes,grooving for countertop sinks, drilI holes for water pipes, or mill any other shape. Also berotated 9o degrees to mount drilling and milling tools.
3. Utilizing advanced Italian software with high intel ligence. Multi-language support al lows for flexible switching, suitable for use in countries around the world.
4. The suction cup automatically shifts to prevent over-cutting of materials, saving on material.
5. Measurement instrument docking supports importing DXF format drawings for dust-free on-site installation.

6. The photo-taking function enhances mater ial yield, facilitating pattern tracking andavoiding flaws in layout
7. Automatic oiling and scheduled maintenance reduce the likel ihood of malfunction.8. The workbench surface can be optional ly equipped with a rubber mat, which further enhances the cutting effect of the rock slab.
9. The entire machine can fit into a standard 20-foot container, saving shipping costs.
10. Boards can be measured, and a tool setting device is avai lable as an optional accessory.
