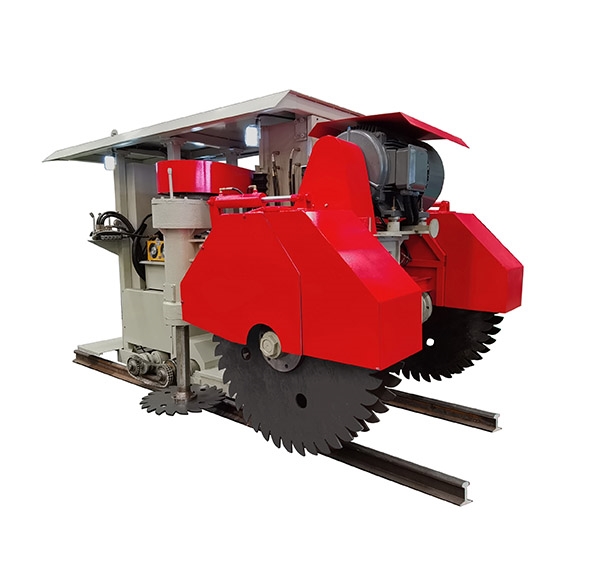

hualongmc@163.comHKSS-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4)Powerful motors with 93% efficiency, tall output and low consumption.
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆机械，数控五轴桥切机，四轴桥切机，4+1桥切，5+1桥切，三轴桥切机，红外线桥切机，石材切机，石材加工厂设备，石材抛光机，石材抛光设备，石材加工中心，台面加工中心，水刀，水刀切割机，矿山开采设备，矿山圆盘锯，圆盘双刀锯，矿山机，矿山锯。
| 参数 | 单位 | HKSS-1400 | |
| 纵向锯片直径 | Diameter of the vertical | mm | 1330 |
| 横向锯片直径 | Diameter of the horizontal | mm | 600 |
| 锯片厚度 | Blade Thickness | mm | 12 |
| 最大切割深度 | Max.cutting depth | mm | 500 |
| 切割宽度 | cutting width | mm | 1350-1750 |
| 行进速度 | velocity of approach | m/min | 10-45 |
| 升降油缸最大行程 | Max.stroke of the lifting cylinder | mm | 700 |
| 纵向主电机功率 | Vertical main motor power | kw | 75 |
| 横向主电机功率 | Horizontal main motor power | kw | 45 |
| 牵引电机功率 | power of traction motor | kw | 5.5 |
| 液压站电机功率 | Hydraulic station motor power | kw | 5.5 |
| 总功率 | gross power | kw | 133 |
| 整机重量 | gross weight | kg | 6000 |
| 外形尺寸 | Dimensions | mm | 4200×2060×2200 |
温馨提示：如果想了解更多细节，规格、标准、价格和解决方案，请联系我们。
