5 Axis Stone数控锯木机HKNC-450J
采用意大利顶级数控控制系统ESA，是一台全自动两用机床，由5轴数控锯和5轴数控喷水机组合而成，用于切割花岗岩、大理石、石英石、石灰石和新兴陶瓷材料。
数控锯用于切割石板，台面和水槽，刀片轮廓，雕刻等。
水射流切割头是完美的斜切和通过不同的材料切割成精密复杂的形状和角度，是切割陶瓷，石材，大理石和花岗岩镶嵌图案的理想选择。


主要特点
5轴锯-这台机器是一个全插补的5轴桥锯
*自动头部旋转从0°到360°与自动叶片倾斜从0°到90°相结合，使其适合大规模生产运行，同时包含成本。
*可实现不同复杂曲面的加工，集切削、钻孔、铣削、雕刻等功能于一体
变成一个有机整体。


5轴水射流-这台机器是一个完全插值的5轴水射流
*自动头部旋转从0°到360°结合自动磨料切割头倾斜从0°到60°精确
斜切边的内角加工。
* KMT-H20 JET50超压泵配备西门子PLC和电机。


1)五轴联动控制，采用意大利数控Esa系统。
2) 19寸彩色触摸屏，操作简便。
3) Y轴由龙门系统移动，保证了桥架的完美方形
4)采用最先进的直线滚珠导轨传动，由伺服电机通过高精度斜齿轮和齿条驱动，保证了运动的绝对精度。
5)数控锯木机和桥锯可以快速完成简单的手工切割，机器也可以导入和使用DXF （AutoCAD）文件
6)工作平台可倾斜85度，便于装板。
7)照相板嵌套，避免缺陷。
8)手动/自动套料，优化板坯表面利用率
9) RTCP刀点跟踪功能，确保加工精度。

10)可选-静脉匹配很容易匹配完美的每个静脉，颜色在你的项目接缝。

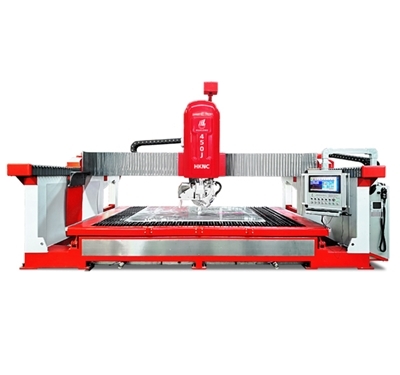

5 Axis Stone CNC Sawjet HKNC-450J
with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.
CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.


Main Features
5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.


5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.


1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
